Westfield parts and upgrades

WESTFIELD PART NUMBER: SPECIAL EDITION MODULE 3

CONTENTS

Body kit including all fittings
Roll over bar
Windscreen assembly, pillars and mirrors
Wiper motor assembly including arms and blades and washer bottle kit
Interior mirror
Full light kit
Full interior kit includes Interior panels, carpet, dashboard, crash pad
Sport-Turbo seats x 2
Full exhaust system and mounting kit
Instrument and switch set
Battery and leads
Fitted wheels and tyres including wheel nuts
Steering wheel and boss (IVA compliant)
Fuel cap kit locking
Aluminium gear knob
Seat belts
Number plate mounting

WESTFIELD PART NUMBER: SEIW-MAZDA-SDV-COMP

CONTENTS

IVA plastic cover kit
Rack mounting kit
8mm fuel hose
Track rod ends
Ball joint set
Fuel pump kit
Shock absorber kit
Steering rack
Fastener kit
Aluminium radiator
Expansion tank
Expansion tank cap
Windscreen washers, pump and tank
XK fuel tank straps
Radiator mounting bracket
Thermostat washer
Expansion tank mounting bracket
Fan mounting kit
Pair of interior panels – (vinyl cover)
Fastener kit
Wiper wheel box
Windscreen wiper motor kit
Wiper rack & tube set
Washer tubing
Wiper set (black)
Windscreen washer jet (black)
Windscreen & mounting pillars (black)
Rear no plate mount (fibre glass)
Fuel hose (57 mm / 2-1/4”)
Fuel cap & inlet assembly – unleaded
Wiring grommets
Fog / reverse lamp levelling bracket
Hose clamps
Indicator pod (plastic)
Wing mirrors – 1 pair (black)
Nose grill (expanded metal)
3-point safety belt
Roll bar (black)
Silencer – with cat (5 1/2” dia)
Exhaust cover (5 1/2” dia)
Kick strip – 1 pair (vinyl)
Adjustable sport seats – 1 pair (vinyl)
Carpet set
Dashboard
Interior mirror
Crash pad covered
Fastener kit
Bonnet catch set
Exhaust manifold down pipe
Battery lead – positive
Battery lead – negative
Battery clamp
Battery tray
Kick strip – 1 pair (vinyl)
Brake pipe clips
Tie rap clips
Fuel pipe
Clevis pin
Light set including:
Headlamps (black)
Front indicators
Reversing light
Side light, indicators, and rear lamp units
Number plate light

WESTFIELD PART NO: 5530124

DESCRIPTION:

Black Heated Windscreen Kit Epoxy

Kit includes, heated windscreen, windscreen pillars, mirrors, fittings, heated screen loom and warning light.

WESTFIELD PART NO: 5530132

DESCRIPTION:

Windscreen Kit Heated Polished
Kit includes, heated windscreen, windscreen pillars, mirrors, fittings, heated screen loom and warning light
PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY AND CANNOT BE SHIPPED.

WESTFIELD PART NO: 3702096

DESCRIPTION:

Wide track front wishbone 3rd generation kit, with wide track front and rear shocks and springs also includes front and rear brake hoses and powerflex bush set.

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack


NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

WESTFIELD PART NO: 3702095

DESCRIPTION:

Wide track front wishbone 3rd generation kit, also includes front brake hoses and metalastic bushes

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

Kit Includes:

2 top and 2 bottom powder coated +50mm wide track wishbones 3rd generation
2 camber adjusters for top wishbones
4 top hat bushes for aluminium uprights to fit new style ball joints 2 upper 2 lower
2 top ball joints and nuts 3rd generation
2 lower ball joints and retaining clips 3rd generation
All nuts bolts and washers to fit the kit to your car.
8 suspension bushes (4313001)
2 longer brake hoses. (sei rear brake hoses required 2311007)

NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

WESTFIELD PART NO: 3702093

DESCRIPTION:

Wide track front wishbone kit 3rd generation.

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

Kit Includes:

2 top and 2 bottom powder coated +50mm wide track wishbones 3rd generation
2 camber adjusters for top wishbones
4 top hat bushes for aluminium uprights to fit new style ball joints 2 upper 2 lower
2 top ball joints and nuts 3rd generation
2 lower ball joints and retaining clips 3rd generation
All nuts bolts and washers to fit the kit to your car.

You will also require

8 suspension bushes (4313001)

2 longer brake hoses. (sei rear brake hoses required 2311007)2 Wide track front springs (3702093)

NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

WESTFIELD PART NO: 3500118

DESCRIPTION:

Westfield FW LED light upgrade kit
Kit Includes 2 x Front Indicators, 2 x Rear Indicators, 1 x Fog Lamp and 1 x Reverse Lamp.
This Kit is suitable for customers who already have an FW rear light kit as standard.
Does not Include Headlamps but can be sold separately.

WESTFIELD PART NO: 2951010

DESCRIPTION:

Zetec Starter Motor To Suit Raceline Sump
Lightweight, high torque starter motor for Zetec engines with raceline sump, Zetec flywheel and type 9 gearbox.
Specification:Kilowatts     1.40 kWTeeth           10Boss Size     89mmVoltage        12 VWeight:       2.90 kg
Current spec starter motor for black top Zetec with Raceline sump.

WESTFIELD PART NO: 3711255B

DESCRIPTION:

3rd Gen Wide Track Front Bottom Wishbone
Please note that listing is for wishbone only, does not include ball joint that you will need to get pressed in.
The full set of wishbones is 1 kg lighter than the standard Westfield Widetrack

WESTFIELD PART NO: 4611135

DESCRIPTION:

FIA approved Magnum TRS premium harness, 4 point fixing with 3" straps. Fits all Westfields with lowered floors with two eye bolt mounts. *** Please be aware as harnesses do not have E mark and for this reason are non IVA compliant***

Left and right hand captive options available. Priced and sold individually.

Steel anti-creep adjusters
Snap hook fixings all around
FHR Compatible
The 4pt Magnum Harness has steel anti-creep adjusters and snap hook fixings all round. The shoulder straps can be wrapped around the roll cage if required.
TRS' light weight 140 gram quick release buckle is of composite construction and is attached to the right-hand lap strap on 4 point harnesses.

Innovative features such as, a securing tab for intercom cables on the shoulder strap, thumb loops on lower shoulder straps and Velcro patches on lap straps were all pioneered by TRS and are standard on all of our competition harnesses.

Weight: 1201 grams

***Please note, this will suit Westfields with flat floors - only if seat is right back against the rear bulk head. If moved forward they not be applicable***

WESTFIELD PART NO: 4611136

DESCRIPTION:

FIA approved Magnum TRS premium harness, 4 point fixing with 3" straps. Fits all Westfields with lowered floors with two eye bolt mounts. *** Please be aware as harnesses do not have E mark and for this reason are non IVA compliant***

Left and right hand captive options available. Priced and sold individually.

Steel anti-creep adjusters
Snap hook fixings all around
FHR Compatible
The 4pt Magnum Harness has steel anti-creep adjusters and snap hook fixings all round. The shoulder straps can be wrapped around the roll cage if required.
TRS' light weight 140 gram quick release buckle is of composite construction and is attached to the right-hand lap strap on 4 point harnesses.

Innovative features such as, a securing tab for intercom cables on the shoulder strap, thumb loops on lower shoulder straps and Velcro patches on lap straps were all pioneered by TRS and are standard on all of our competition harnesses.

Weight: 1201 grams

***Please note, this will suit Westfields with flat floors - only if seat is right back against the rear bulk head. If moved forward they not be applicable***

WESTFIELD PART NO: 4611134

DESCRIPTION:

FIA approved Magnum TRS premium harness, 4 point fixing with 3" straps. Fits all Westfields with lowered floors with two eye bolt mounts. *** Please be aware as harnesses do not have E mark and for this reason are non IVA compliant***

Left and right hand captive options available. Priced and sold individually.

Steel anti-creep adjusters
Snap hook fixings all around
FHR Compatible
The 4pt Magnum Harness has steel anti-creep adjusters and snap hook fixings all round. The shoulder straps can be wrapped around the roll cage if required.
TRS' light weight 140 gram quick release buckle is of composite construction and is attached to the right-hand lap strap on 4 point harnesses.

Innovative features such as, a securing tab for intercom cables on the shoulder strap, thumb loops on lower shoulder straps and Velcro patches on lap straps were all pioneered by TRS and are standard on all of our competition harnesses.

Weight: 1201 grams

***Please note, this will suit Westfields with flat floors - only if seat is right back against the rear bulk head. If moved forward they not be applicable***

WESTFIELD PART NO: 4611133

DESCRIPTION:

FIA approved Magnum TRS premium harness, 4 point fixing with 3" straps. Fits all Westfields with lowered floors with two eye bolt mounts. *** Please be aware as harnesses do not have E mark and for this reason are non IVA compliant***

Left and right hand captive options available. Priced and sold individually.

Steel anti-creep adjusters
Snap hook fixings all around
FHR Compatible
The 4pt Magnum Harness has steel anti-creep adjusters and snap hook fixings all round. The shoulder straps can be wrapped around the roll cage if required.
TRS' light weight 140 gram quick release buckle is of composite construction and is attached to the right-hand lap strap on 4 point harnesses.

Innovative features such as, a securing tab for intercom cables on the shoulder strap, thumb loops on lower shoulder straps and Velcro patches on lap straps were all pioneered by TRS and are standard on all of our competition harnesses.

Weight: 1201 grams

***Please note, this will suit Westfields with flat floors - only if seat is right back against the rear bulk head. If moved forward they not be applicable***

WESTFIELD PART NO: 4611132

DESCRIPTION:

FIA approved Magnum TRS premium harness, 4 point fixing with 3" straps. Fits all Westfields with lowered floors with two eye bolt mounts. *** Please be aware as harnesses do not have E mark and for this reason are non IVA compliant***

Left and right hand captive options available. Priced and sold individually.

Steel anti-creep adjusters
Snap hook fixings all around
FHR Compatible
The 4pt Magnum Harness has steel anti-creep adjusters and snap hook fixings all round. The shoulder straps can be wrapped around the roll cage if required.
TRS' light weight 140 gram quick release buckle is of composite construction and is attached to the right-hand lap strap on 4 point harnesses.

Innovative features such as, a securing tab for intercom cables on the shoulder strap, thumb loops on lower shoulder straps and Velcro patches on lap straps were all pioneered by TRS and are standard on all of our competition harnesses.

Weight: 1201 grams

***Please note, this will suit Westfields with flat floors - only if seat is right back against the rear bulk head. If moved forward they not be applicable***

WESTFIELD PART NO: 4611131

DESCRIPTION:

FIA approved Magnum TRS premium harness, 4 point fixing with 3" straps. Fits all Westfields with lowered floors with two eye bolt mounts. *** Please be aware as harnesses do not have E mark and for this reason are non IVA compliant***

Left and right hand captive options available. Priced and sold individually.

Steel anti-creep adjusters
Snap hook fixings all around
FHR Compatible
The 4pt Magnum Harness has steel anti-creep adjusters and snap hook fixings all round. The shoulder straps can be wrapped around the roll cage if required.
TRS' light weight 140 gram quick release buckle is of composite construction and is attached to the right-hand lap strap on 4 point harnesses.

Innovative features such as, a securing tab for intercom cables on the shoulder strap, thumb loops on lower shoulder straps and Velcro patches on lap straps were all pioneered by TRS and are standard on all of our competition harnesses.

Weight: 1201 grams

***Please note, this will suit Westfields with flat floors - only if seat is right back against the rear bulk head. If moved forward they not be applicable***

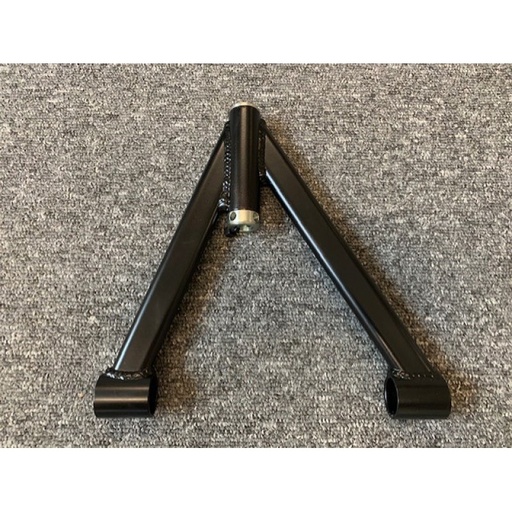

WESTFIELD PART NO: 3712215B

DESCRIPTION:

3rd Gen Wide Track Front Top Wishbone
The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

WESTFIELD PART NO: 5231015

DESCRIPTION:

Formula Self-Aligning Quick Release Boss - Weld On
Go-Race Formula (3 X 50.8 mm PCD) Quick Release Steering Boss with Weld-On Shaft

The self-aligning mechanism makes it easier and faster to attach your steering wheel. Simply attach the boss and turn the wheel until the locking mechanism locates
Precision CNC machined using high quality materials
Zero play design eliminates any backlash
Lightweight Design
Weld-on Shaft adaptable to any steering column*

3 x 50.8 mm PCD bolt flange suitable for most single seater / formula wheels
Choice of colour (gold or black)
Conforms with FIA regulations
Manufactured in the UK
PRODUCT SPECIFICATIONS
Wheel Fitting 3 X 50.8 mm PCD
Column Fitting Weld On
Boss Material Aluminium
Boss Finish Hard Anodised
Boss Weight 135 g
Shaft Material Mild Steel
Shaft Finish Nickel (removed on welded area)
Shaft Weight 100 g

*Welding to be carried out by experienced welder/fitter. Requires drilling/machining to fit column.

WESTFIELD PART NO: 4930001

DESCRIPTION:

Switch and warning light set
Set includes the following items... Fog light switch, Windscreen washer switch, Horn switch, Side/Light switch, Fan Heater switch, Dip/wiper flick switch, Indicator switch, Windscreen Wiper switch, Blue headlamp warning light, Red brake warning light, Red battery warning light, 2 x Green indicator warning lights.
Does not include switch identification decal

WESTFIELD PART NO: 3525006

DESCRIPTION:

ZK Carbon Effect Rear Light Housings
Price is per pair of housings - not sold individually.
Designed to fit cars with later ZK bodywork not kit style bodywork, from roughly 1998 onwards
