Westfield parts and upgrades

WESTFIELD PART NUMBER: SPECIAL EDITION MODULE 3

CONTENTS

Body kit including all fittings
Roll over bar
Windscreen assembly, pillars and mirrors
Wiper motor assembly including arms and blades and washer bottle kit
Interior mirror
Full light kit
Full interior kit includes Interior panels, carpet, dashboard, crash pad
Sport-Turbo seats x 2
Full exhaust system and mounting kit
Instrument and switch set
Battery and leads
Fitted wheels and tyres including wheel nuts
Steering wheel and boss (IVA compliant)
Fuel cap kit locking
Aluminium gear knob
Seat belts
Number plate mounting

WESTFIELD PART NUMBER: SPECIAL EDITION MODULE 1

CONTENTS

Space frame epoxy coated chassis
Rivnuts and diff bushes
Aluminium panels supplied
Front and rear wishbones (epoxy coated and bushed)
Aluminium front and rear uprights, hubs, brake discs and calipers
Pedal assembly
Master cylinder
Drive shafts and cv joints
Differential (LSD)
Brake pipes and Aeroquip hoses
Fuel lines
Steering columns top and bottom
Battery tray
Wiring loom
Ball joints
Shock absorbers and springs
Steering rack, mountings and track rod ends
Hand brake lever and cable
Complete fastener kit

WESTFIELD PART NUMBER: SPECIAL EDITION MODULE 2

CONTENTS

Fully assembled brand new Ford ZETEC engine
Factory reconditioned gearbox
Prop shaft
Engine and gearbox mounting kit
Engine management system
Fuel tank and mounting kit
Fuel pump and fuel hose
Radiator and mounting kit
Fan, mounting kit and hose kit
Horn
Full fluids kit (Engine, gearbox, diff oil, coolant and brake fluid)

WESTFIELD PART NO: 1730022

DESCRIPTION:

Westfield racing wet sump kit to suit zetec black top 2.0 litre engines.

Please note: Image is for display purposes only, Actual kit will vary!

You will also require the following parts for installation:

1 x 2951010 - Starter Motor

1 x 1734008 - Sump Gasket £22.80

1 x 1754015 - Oil Filter

WESTFIELD PART NO: 1711091

DESCRIPTION:

Zetec Exhaust Manifold
Primary Manifold for Zetec Blacktop Engine
Outlet (silencer end) is 2 inches in diameter
Manifold will also suit the silver top zetec engine

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 2640045

DESCRIPTION:

Zetec Cooling Hose Kit
Will Not suit ducted nose cone setups.
Please note that photo is for illustration purpose.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 2940064

DESCRIPTION:

Zetec Blacktop Alternator Fitting Kit
Kit components:1 x 4942056 - Alternator plate1 x 2945156 - Alternator belt 2L Blacktop1x x 2942126B - Alternator bracket Zetec R1 x 1416143 - Spacer idler pulley Zetec R1 x 1417132 - Spacer idler pulley short1 x 1470189B - Mounting plate idler pulley1 x 2943038 - Pulley1 x 2943011 - Idler pulley1 x 6811010 - M10 Lock washer single1 x 6823UTO - M10 washer1 x 8155450 - M10x45 socket cap bolt1 x 8111800 - M10x 80 hex head bolt6 x 6802801 - M8 plain washer1 x 6811008 - M8 washer lock singe coil4 x 71230008 - M8 x 1.25 nyloc nut1 x 8111308 - M8 x 30 hex head 1 x 8111358 - M8x35 hex head bolt3 x 8111408 - M8x40 hex head bolt1 x 8165840 - M8x40 special cap head

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 2941059

DESCRIPTION:

Zetec Alternator
Used on factory supplied zetec engines.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

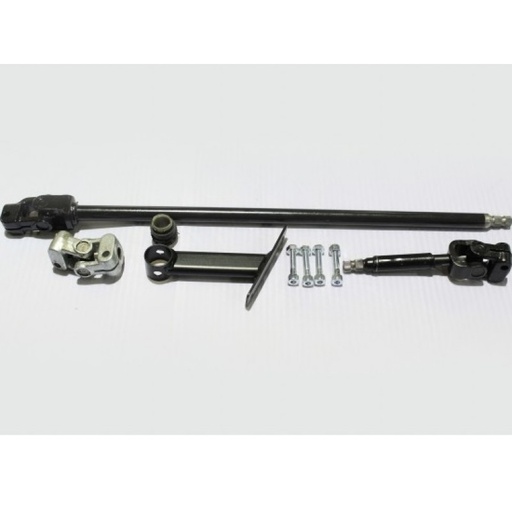

WESTFIELD PART NO: 5220038

DESCRIPTION:

Zetec Steering Column Kit
This Kit will only suit black top zetec engines with standard injection or throttle bodies. If you have throttle bodies installed you can use 5221000 lower single piece column.

WESTFIELD PART NO: 3240010

DESCRIPTION:

2.0 Zetec Black Top Clutch Kit

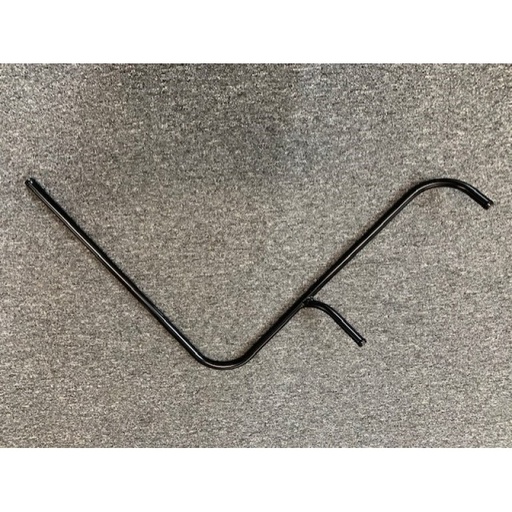

WESTFIELD PART NO: 2642135B

DESCRIPTION:

Zetec Header Rail Water Pipe

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 2951010

DESCRIPTION:

Zetec Starter Motor To Suit Raceline Sump
Lightweight, high torque starter motor for Zetec engines with raceline sump, Zetec flywheel and type 9 gearbox.
Specification:Kilowatts     1.40 kWTeeth           10Boss Size     89mmVoltage        12 VWeight:       2.90 kg
Current spec starter motor for black top Zetec with Raceline sump.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

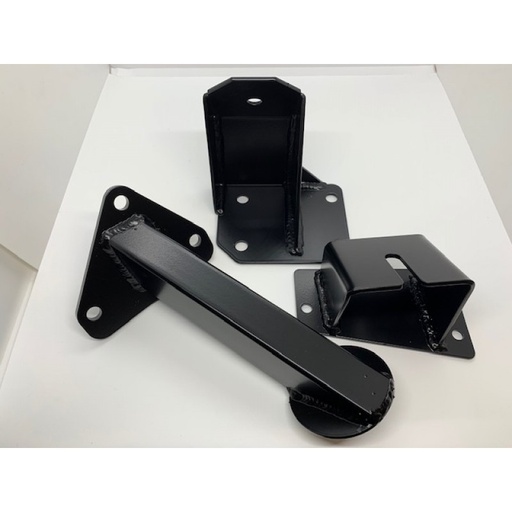

WESTFIELD PART NO: 1720094

DESCRIPTION:

Zetec Engine Mounting Set

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

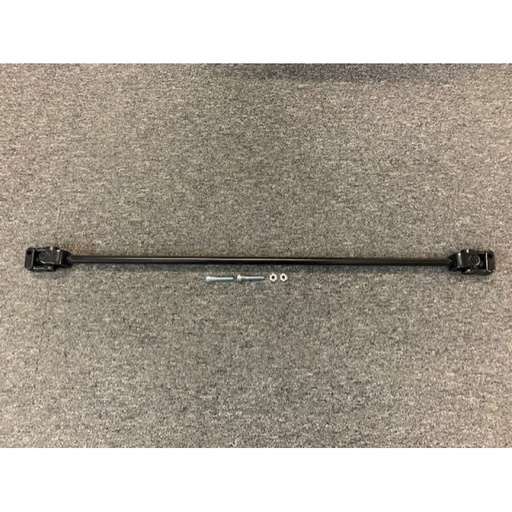

WESTFIELD PART NO: 5221000

DESCRIPTION:

Lower steering column including high tensile bolts
End to end measurement is 815mm.
This steering column can be used on Black Top Zetec's that have throttle bodies fitted to replace the 3 piece column kit.

WESTFIELD PART NO: 2943038

DESCRIPTION:

Idler Pulley For Zetec and Duratec

WESTFIELD PART NO: 4032043B

DESCRIPTION:

Zetec Air Intake Box

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 2921127

DESCRIPTION:

Zetec Engine Loom Black Top
Please note this is an ancillary loom only NOT engine management loom

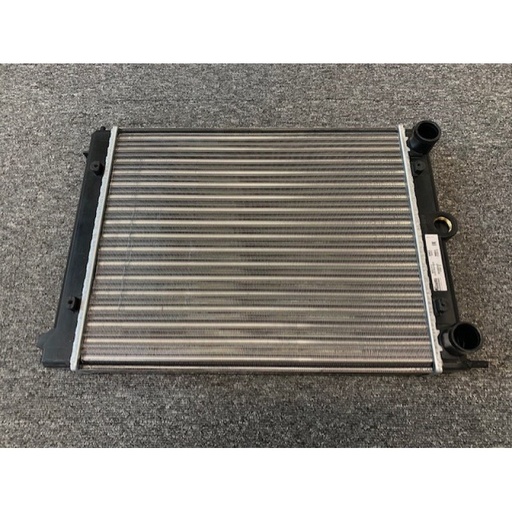

WESTFIELD PART NO: 2622001

DESCRIPTION:

Lightweight radiator for use with ducted nose cone and standard cone.
Fits all Zetec engine Westfield's.

Length: 47cm
Width: 33cm
height: 5cm

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4032016

DESCRIPTION:

Foam air filter, suitable for OMEX throttle body kits and Duratec Webcon throttle body kits. Filter also used on bike engine cars (BEC).

Does not include backing plate.

Please note that the signage on the filter foam may differ if there are any supply issues.

WESTFIELD PART NO: 2943011

DESCRIPTION:

Idler Tension Pulley for Zetec and Duratec
