Westfield parts and upgrades

WESTFIELD PART NO: 3230195

DESCRIPTION:

Gearbox conversion for Westfield XI - 5 speed

Kit Includes:

-clutch plate
-clutch cover
-clutch release bearing
-spigot bearing for flywheel
-propshaft type 9
-gearbox type 9
-bell housing
-type 9 gearbox mounting rubber
-speedo cable

WESTFIELD PART NO: 3702096

DESCRIPTION:

Wide track front wishbone 3rd generation kit, with wide track front and rear shocks and springs also includes front and rear brake hoses and powerflex bush set.

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack


NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

WESTFIELD PART NO: 1131513

DESCRIPTION:

Westfield XI Nose section
Please leave a message on your order of the colour you require.
Colour Choice - Ash Grey, Black, British Racing Green, Navy Blue or White
PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY

WESTFIELD PART NO: 1111520

DESCRIPTION:

Westfield XI Rear section
Please leave a message on your order of the colour you require.
Colour Choice - Ash Grey, Black, British Racing Green, Navy Blue or White
PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY

WESTFIELD PART NO: 5503302

DESCRIPTION:

Fw Hood and sidescreen kit, will only suit standard windscreen and roll bar setups.
Includes hood, frame, sidescreens and all relevant fixings

WESTFIELD PART NO: 4633025

DESCRIPTION:

Full FIA specification roll cage. To suit wide bodied Westfields.
Includes all fittings, nuts, bolts and washers. 2-3 weeks lead time.

FW roll bar covers are not included and will need to be purchased separately. The part number for these is 1290020

PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY AND CANNOT BE SHIPPED.

Material used:PTG700/T45 vs CDS Material Specifications:T45 (High Tensile Carbon Manganese Steel) & PTG700 has a tensile strength between 700M/mm2-900N/mm2, whereas CDS (Cold Drawn Seamless Carbon Steel) has tensile strength of approximately 480N/mm2.The minimum yield strength (when metal starts to deform) of T45 & PTG700 (620N/mm2) is almost double that of CDS.

WESTFIELD PART NO: 2340076

DESCRIPTION:

Westfield Racing 4 pot caliper upgrade kit

The kit includes, Westfield Racing pot callipers, Grooved and vented 283mm front discs, Ferodo DS2500 pads (upgraded pad spec), All fittings to mount  the parts to your car.

Will fit Westfield aluminium uprights and hubs and ford Cortina front uprights and Cortina hubs.

THIS BRAKE KIT WILL FIT INSIDE WESTFIELD STANDARD FITMENT 13" WHEELS
Flexible hoses not included in kit. If you require hoses they are available separately

WESTFIELD PART NO: 2340075

DESCRIPTION:

Westfield Racing 4 pot caliper upgrade kit

The kit includes, Westfield Racing pot callipers, Grooved and vented 283mm front discs, Ferodo DS2500 pads (upgraded pad spec), All fittings to mount  the parts to your car.

Will fit Westfield aluminium uprights and hubs and ford Cortina front uprights and Cortina hubs.

THIS BRAKE KIT WILL FIT INSIDE WESTFIELD STANDARD FITMENT 13" WHEELS
Flexible hoses not included in kit. If you require hoses they are available separately

WESTFIELD PART NO: 4633039

DESCRIPTION:

Full FIA specification roll cage. To suit standard/narrow bodied Westfields.

Please be aware welding is required for installation of the side bars. Side bars may also require cutting down to suit your chassis. Early narrow chassis varied in design, bars are provided longer to allow for variables.
Includes all fittings, nuts, bolts and washers.

PTG700/T45 vs CDS Material Specifications:
T45 (High Tensile Carbon Manganese Steel) & PTG700 has a tensile strength between 700M/mm2-900N/mm2, whereas CDS (Cold Drawn Seamless Carbon Steel) has tensile strength of approximately 480N/mm2.
The minimum yield strength (when metal starts to deform) of T45 & PTG700 (620N/mm2) is almost double that of CDS.

WESTFIELD PART NO: 4633038

DESCRIPTION:

Full FIA specification roll cage. To suit standard/narrow bodied Westfields.

Please be aware welding is required for installation of the side bars. Side bars may also require cutting down to suit your chassis. Early narrow chassis varied in design, bars are provided longer to allow for variables.
Includes all fittings, nuts, bolts and washers.

PTG700/T45 vs CDS Material Specifications:
T45 (High Tensile Carbon Manganese Steel) & PTG700 has a tensile strength between 700M/mm2-900N/mm2, whereas CDS (Cold Drawn Seamless Carbon Steel) has tensile strength of approximately 480N/mm2.
The minimum yield strength (when metal starts to deform) of T45 & PTG700 (620N/mm2) is almost double that of CDS.

WESTFIELD PART NO: 5502007

DESCRIPTION:

ZK Lockable Boot Lid Kit complete with all fixings.
Please leave a message on your order of the colour you require.
PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY

WESTFIELD PART NO: 1151012

DESCRIPTION:

Westfield XI Doors
Doors are supplied in an unpolished white or grey gelcoat. The panels would require painting to match the car.

WESTFIELD PART NO: 5811217

DESCRIPTION:

Westfield XI Seat
Seat runners not included

WESTFIELD PART NO: 5532023

DESCRIPTION:

Black Heated Wide Body Windscreen

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

WESTFIELD PART NO: 55522XX

DESCRIPTION:

ZK Classic Hood and Frame kit.
Kit includes Hood, Frame, mounting brackets and fixings.
Please note that this setup will only suit cars with standard roll bar and standard screen.
WILL NOT SUIT HALF CAGES OR TALL WINDSCREENS.

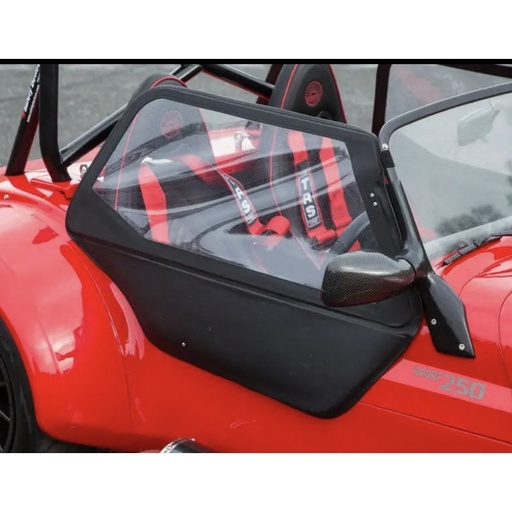

WESTFIELD PART NO: 5540242

DESCRIPTION:

Sidescreens for the taller Sport Turbo windscreen option
Fixing kit will need to be ordered depending on which pillars you have fitted

WESTFIELD PART NO: 5552278

DESCRIPTION:

Fw Hood only, no frame or fixings included. If kits are needed please see related products at bottom of page.

WESTFIELD PART NO: 3702095

DESCRIPTION:

Wide track front wishbone 3rd generation kit, also includes front brake hoses and metalastic bushes

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

Kit Includes:

2 top and 2 bottom powder coated +50mm wide track wishbones 3rd generation
2 camber adjusters for top wishbones
4 top hat bushes for aluminium uprights to fit new style ball joints 2 upper 2 lower
2 top ball joints and nuts 3rd generation
2 lower ball joints and retaining clips 3rd generation
All nuts bolts and washers to fit the kit to your car.
8 suspension bushes (4313001)
2 longer brake hoses. (sei rear brake hoses required 2311007)

NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

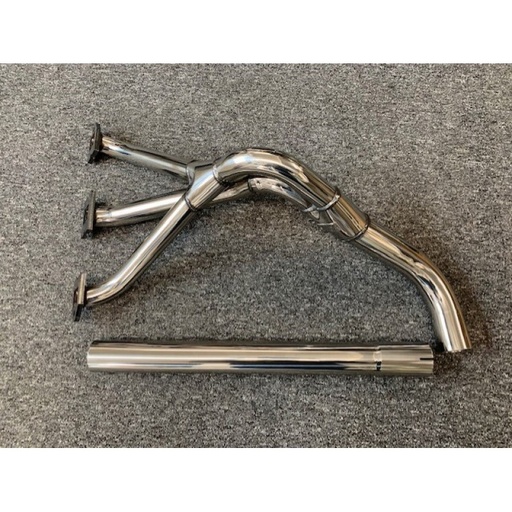

WESTFIELD PART NO: 1711163

DESCRIPTION:

Westfield XI Exhaust Manifold

WESTFIELD PART NO: 5552280

DESCRIPTION:

Fw Hood and Frame, Inc all fixings.
