Westfield parts and upgrades

WESTFIELD PART NUMBER: SPECIAL EDITION MODULE 3

CONTENTS

Body kit including all fittings
Roll over bar
Windscreen assembly, pillars and mirrors
Wiper motor assembly including arms and blades and washer bottle kit
Interior mirror
Full light kit
Full interior kit includes Interior panels, carpet, dashboard, crash pad
Sport-Turbo seats x 2
Full exhaust system and mounting kit
Instrument and switch set
Battery and leads
Fitted wheels and tyres including wheel nuts
Steering wheel and boss (IVA compliant)
Fuel cap kit locking
Aluminium gear knob
Seat belts
Number plate mounting

WESTFIELD PART NUMBER: SEIW-MAZDA-SDV-COMP

CONTENTS

IVA plastic cover kit
Rack mounting kit
8mm fuel hose
Track rod ends
Ball joint set
Fuel pump kit
Shock absorber kit
Steering rack
Fastener kit
Aluminium radiator
Expansion tank
Expansion tank cap
Windscreen washers, pump and tank
XK fuel tank straps
Radiator mounting bracket
Thermostat washer
Expansion tank mounting bracket
Fan mounting kit
Pair of interior panels – (vinyl cover)
Fastener kit
Wiper wheel box
Windscreen wiper motor kit
Wiper rack & tube set
Washer tubing
Wiper set (black)
Windscreen washer jet (black)
Windscreen & mounting pillars (black)
Rear no plate mount (fibre glass)
Fuel hose (57 mm / 2-1/4”)
Fuel cap & inlet assembly – unleaded
Wiring grommets
Fog / reverse lamp levelling bracket
Hose clamps
Indicator pod (plastic)
Wing mirrors – 1 pair (black)
Nose grill (expanded metal)
3-point safety belt
Roll bar (black)
Silencer – with cat (5 1/2” dia)
Exhaust cover (5 1/2” dia)
Kick strip – 1 pair (vinyl)
Adjustable sport seats – 1 pair (vinyl)
Carpet set
Dashboard
Interior mirror
Crash pad covered
Fastener kit
Bonnet catch set
Exhaust manifold down pipe
Battery lead – positive
Battery lead – negative
Battery clamp
Battery tray
Kick strip – 1 pair (vinyl)
Brake pipe clips
Tie rap clips
Fuel pipe
Clevis pin
Light set including:
Headlamps (black)
Front indicators
Reversing light
Side light, indicators, and rear lamp units
Number plate light

WESTFIELD PART NO: 5503302

DESCRIPTION:

Fw Hood and sidescreen kit, will only suit standard windscreen and roll bar setups.
Includes hood, frame, sidescreens and all relevant fixings

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

SPECIAL INSTRUCTIONS:

Please note all trim orders are made to order due to the various colour and style options available. The lead time can vary from time to time so please bare this in mind when ordering. We have various trim colours available but please give us a ring and we can discuss options for your needs if not black trim will be supplied.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4633025

DESCRIPTION:

Full FIA specification roll cage. To suit wide bodied Westfields.
Includes all fittings, nuts, bolts and washers. 2-3 weeks lead time.

FW roll bar covers are not included and will need to be purchased separately. The part number for these is 1290020

PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY AND CANNOT BE SHIPPED.

Material used:PTG700/T45 vs CDS Material Specifications:T45 (High Tensile Carbon Manganese Steel) & PTG700 has a tensile strength between 700M/mm2-900N/mm2, whereas CDS (Cold Drawn Seamless Carbon Steel) has tensile strength of approximately 480N/mm2.The minimum yield strength (when metal starts to deform) of T45 & PTG700 (620N/mm2) is almost double that of CDS.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3702096

DESCRIPTION:

Wide track front wishbone 3rd generation kit, with wide track front and rear shocks and springs also includes front and rear brake hoses and powerflex bush set.

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack


NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4633039

DESCRIPTION:

Full FIA specification roll cage. To suit standard/narrow bodied Westfields.

Please be aware welding is required for installation of the side bars. Side bars may also require cutting down to suit your chassis. Early narrow chassis varied in design, bars are provided longer to allow for variables.
Includes all fittings, nuts, bolts and washers.

PTG700/T45 vs CDS Material Specifications:
T45 (High Tensile Carbon Manganese Steel) & PTG700 has a tensile strength between 700M/mm2-900N/mm2, whereas CDS (Cold Drawn Seamless Carbon Steel) has tensile strength of approximately 480N/mm2.
The minimum yield strength (when metal starts to deform) of T45 & PTG700 (620N/mm2) is almost double that of CDS.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4633038

DESCRIPTION:

Full FIA specification roll cage. To suit standard/narrow bodied Westfields.

Please be aware welding is required for installation of the side bars. Side bars may also require cutting down to suit your chassis. Early narrow chassis varied in design, bars are provided longer to allow for variables.
Includes all fittings, nuts, bolts and washers.

PTG700/T45 vs CDS Material Specifications:
T45 (High Tensile Carbon Manganese Steel) & PTG700 has a tensile strength between 700M/mm2-900N/mm2, whereas CDS (Cold Drawn Seamless Carbon Steel) has tensile strength of approximately 480N/mm2.
The minimum yield strength (when metal starts to deform) of T45 & PTG700 (620N/mm2) is almost double that of CDS.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 55522XX

DESCRIPTION:

ZK Classic Hood and Frame kit.
Kit includes Hood, Frame, mounting brackets and fixings.
Please note that this setup will only suit cars with standard roll bar and standard screen. WILL NOT SUIT HALF CAGES OR TALL WINDSCREENS.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

SPECIAL INSTRUCTIONS:

Please note all trim orders are made to order due to the various colour and style options available. The lead time can vary from time to time so please bare this in mind when ordering. We have various trim colours available but please give us a ring and we can discuss options for your needs if not black trim will be supplied.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 55402XX

DESCRIPTION:

Sidescreens including fitting kit, suits standard screen for ZK or FW set up with standard roll bar or half cage.
These will not fit standard/narrow body cars.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

SPECIAL INSTRUCTIONS:

Please note all trim orders are made to order due to the various colour and style options available. The lead time can vary from time to time so please bare this in mind when ordering. We have various trim colours available but weather gear is only available in black, the blue crimson and biscuit hooding material used in previous years is no longer available. Please give us a ring and we can discuss options for your needs if not black trim will be supplied.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3702095

DESCRIPTION:

Wide track front wishbone 3rd generation kit, also includes front brake hoses and metalastic bushes

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

Kit Includes:

2 top and 2 bottom powder coated +50mm wide track wishbones 3rd generation
2 camber adjusters for top wishbones
4 top hat bushes for aluminium uprights to fit new style ball joints 2 upper 2 lower
2 top ball joints and nuts 3rd generation
2 lower ball joints and retaining clips 3rd generation
All nuts bolts and washers to fit the kit to your car.
8 suspension bushes (4313001)
2 longer brake hoses. (sei rear brake hoses required 2311007)

NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3702093

DESCRIPTION:

Wide track front wishbone kit 3rd generation.

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

Kit Includes:

2 top and 2 bottom powder coated +50mm wide track wishbones 3rd generation
2 camber adjusters for top wishbones
4 top hat bushes for aluminium uprights to fit new style ball joints 2 upper 2 lower
2 top ball joints and nuts 3rd generation
2 lower ball joints and retaining clips 3rd generation
All nuts bolts and washers to fit the kit to your car.

You will also require

8 suspension bushes (4313001)

2 longer brake hoses. (sei rear brake hoses required 2311007)2 Wide track front springs (3702093)

NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

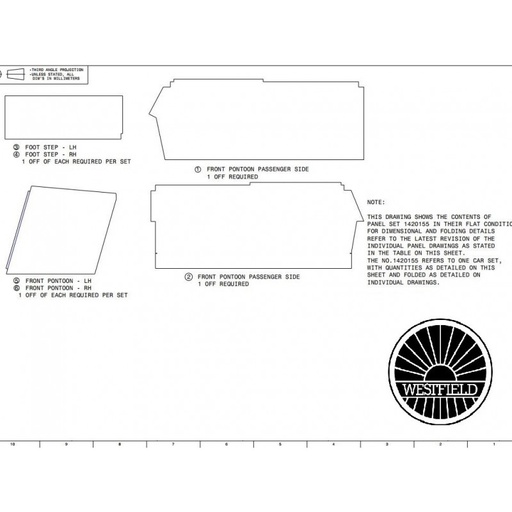

WESTFIELD PART NO: 1420155B

DESCRIPTION:

Westfield XI Pontoon Panel Set
Please note that the panels comes ready to fit so have been laser cut folded and rolled to suit the Westfield XI chassis.
Set includes both sides of panels.
PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY AND CANNOT BE SHIPPED.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 5552282

DESCRIPTION:

Westfield half hood - To fit Westfield RAC bar -  Wide body Westfields (Wide body standard on all kits and cars manufactured since 2000)
Complete kit with all mountings, straps and fittings to mount the part to your car.
Will only work correctly with an RAC roll bar.
Fixings included - to be installed by customers.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 5552285

DESCRIPTION:

New half hood design for the Westfield MSA roll bar with the taller windscreen option.
Suitable for ZK or FW fitment
Fixings included - to be installed by customers

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 6147004

DESCRIPTION:

Custom Made Indoor Car Cover
Tailor made to suit the individual spec of your car.
Available for the following specs...

FW and ZK Body styles
Rollbar or Roll cage
Windscreen or Aeroscreen
Spare wheel or no spare wheel

Cover comes with White Westfield Logo Embroidered to front of cover.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

SPECIAL INSTRUCTIONS:

Please leave a message on your order with the spec of your car so we can order the cover as required

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 5552284

DESCRIPTION:

Westfield half hood for full roll cage -  Wide body Westfields (Wide body standard on all kits and cars manufactured since 2000)
Complete kit with all mountings, straps and fittings to mount the part to your car.
Will only work correctly with a Westfield FIA approved roll cage
The part is held on to the roll cage with velcro, so can be used with windscreens or aeroscreens
Fixings included - to be installed by customers.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4633040

DESCRIPTION:

Half cage roll bar for standard/narrow body cars, with double central cross brace and 2 rear stays.

Supplied with all nuts bolts and washers, all parts needed to fit the bar to your car.
Meeting MSA requirements. will suit LHD and RHD cars also suitable for trackdays, hillclimb, sprint and racing. please check the regulations for your individual championship.
PLEASE NOTE THAT CAGE IS COLLECTION ONLY

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4633037

DESCRIPTION:

Half cage roll bar for widebody cars, with double central cross brace and 2 rear stays.
Suitable for classic and FW body styles.
Supplied with all nuts bolts and washers, all parts needed to fit the bar to your car.

Meeting MSA requirements. will suit LHD and RHD cars also suitable for trackdays, hillclimb, sprint and racing. please check the regulations for your individual championship.

Height, 485mm from roll bar mounting plates on your chassis.

PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY AND CANNOT BE SHIPPED.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3713148

DESCRIPTION:

Wide Track Front Anti Roll Bar Kit
Suitable for all models with widetrack and third generation wishbones.
Is not suitable for standard track cars.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3702137

DESCRIPTION:

Rear anti roll bar kit to suit FW style bodywork
Please note that this kit is not suitable for ZK bodywork

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk
