Westfield parts and upgrades

WESTFIELD PART NUMBER: SPECIAL EDITION MODULE 1

CONTENTS

Space frame epoxy coated chassis
Rivnuts and diff bushes
Aluminium panels supplied
Front and rear wishbones (epoxy coated and bushed)
Aluminium front and rear uprights, hubs, brake discs and calipers
Pedal assembly
Master cylinder
Drive shafts and cv joints
Differential (LSD)
Brake pipes and Aeroquip hoses
Fuel lines
Steering columns top and bottom
Battery tray
Wiring loom
Ball joints
Shock absorbers and springs
Steering rack, mountings and track rod ends
Hand brake lever and cable
Complete fastener kit

WESTFIELD PART NUMBER: SEIW CHY MAZDA-EPX

CONTENT

Space frame chassis
Top and bottom front wishbones
Engine mounting brackets
Brake lines (Aeroquip and T-Piece)
Aluminium panels set – floor pan, seat back, tunnel, scuttle
Nut and bolt pack
Riv-Nut pack
Suspension bushes
Chassis plate
Wing brackets
Hand brake cable
Bottom rear wishbones
Construction manual

WESTFIELD PART NO: 3702096

DESCRIPTION:

Wide track front wishbone 3rd generation kit, with wide track front and rear shocks and springs also includes front and rear brake hoses and powerflex bush set.

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack


NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3702095

DESCRIPTION:

Wide track front wishbone 3rd generation kit, also includes front brake hoses and metalastic bushes

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

Kit Includes:

2 top and 2 bottom powder coated +50mm wide track wishbones 3rd generation
2 camber adjusters for top wishbones
4 top hat bushes for aluminium uprights to fit new style ball joints 2 upper 2 lower
2 top ball joints and nuts 3rd generation
2 lower ball joints and retaining clips 3rd generation
All nuts bolts and washers to fit the kit to your car.
8 suspension bushes (4313001)
2 longer brake hoses. (sei rear brake hoses required 2311007)

NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3702093

DESCRIPTION:

Wide track front wishbone kit 3rd generation.

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

Kit Includes:

2 top and 2 bottom powder coated +50mm wide track wishbones 3rd generation
2 camber adjusters for top wishbones
4 top hat bushes for aluminium uprights to fit new style ball joints 2 upper 2 lower
2 top ball joints and nuts 3rd generation
2 lower ball joints and retaining clips 3rd generation
All nuts bolts and washers to fit the kit to your car.

You will also require

8 suspension bushes (4313001)

2 longer brake hoses. (sei rear brake hoses required 2311007)2 Wide track front springs (3702093)

NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4310002

DESCRIPTION:

Powerflex Suspension bush kit, includes 16 powerflex bushes and 2 metalastic for outer bottom wishbone bushes.
Ultimate performance polyurethane bushes
Designed to give Sport Handling on road or track

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3711052B

DESCRIPTION:

Standard track front bottom wishbone.
Fits all Westfield models 1988 - on wards, with Cortina uprights or Westfield Aluminium uprights.
These wishbones do not fit Mazda SDV or Sierra SDV vehicles.
Direct replacement for previous wishbone with Cortina ball joint (4 bolt flange).
If you are replacing the previous Cortina style ball joint they MUST be replaced as a pair, Both sides of the vehicle must have the same arm, if you need to replace both arms please change quantity to 2 units.
Wishbones are supplied as pictured without ball joints and bushes, these must be ordered separately, please see related items.
Suitable for all types of suspension bush, metalastic, nylon and Powerflex.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 5210001

DESCRIPTION:

Steering Rack Mounting Kit standard
.Metal clamps with poly-bush style rubber inner mounts
You may also require:8 x M8 plain washer4 x M8 x 30 hex head bolt4 x M8 nyloc nut

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4923022B

DESCRIPTION:

Floor mounted accelerator pedal.

You will also require:

1 x 1416164 - Pedal pivot bush

1 x 4922007 - Accelerator trunnion

1 x 8174085 - Grub screw

All parts priced and sold individually on shop.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3224031B

DESCRIPTION:

Sierra Diff Stabilising Bracket
Bush not included but can be purchased 4313001

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3752002

DESCRIPTION:

Bottom ball joint (sold as an individual unit )
Please note these have a two bolt flange fixing, if your Westfield has the four bolt flange these are not a direct replacement.
***If you have the four bolt flange ball joints on your Westfield and cannot find a suitable replacement in the aftermarket sector, you will need to upgrade to the newer version of the standard track wishbone - 2 x  3711052B. You will also require 2 x 3752002. Lastly you will require replacement 4 x suspension bush - various options, please search for 'suspension bush'.
2 bolt flange style fitment wishbones are a direct replacement for the older 4 bolt flange wishbones.
***Will NOT suit 3rd generation wishbones.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4319028B

DESCRIPTION:

Mazda SDV Mounting Bush

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4310001

DESCRIPTION:

Powerflex ( Sport ) Polyurethane suspension bushes. (Sold individually)
(EACH SET IS 1X METAL 1X BLACK 2X WHITE )
Ultimate performance polyurethane bushes
Designed to give Sport Handling on road or track

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 5225000

DESCRIPTION:

Steering Column Bracket Bush

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3702010

DESCRIPTION:

Nylon Bush Set

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4313001

DESCRIPTION:

Wishbone Metalastic Suspension Bush
Will fit all models.
Bushes used on panhard rod and rear trailing arms

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4922024

DESCRIPTION:

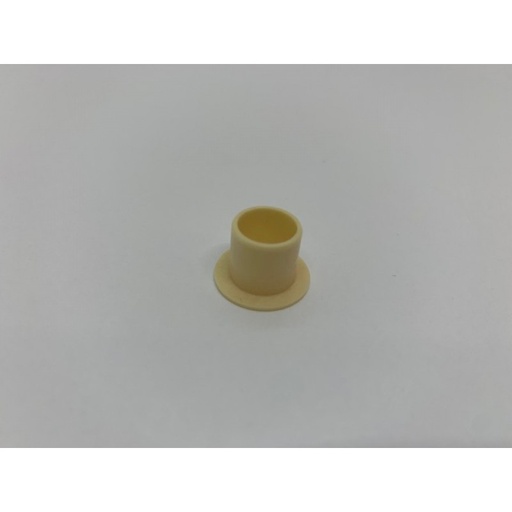

Clutch Cable Bush For Type 9 Gearbox

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4313064B

DESCRIPTION:

Differential mounting bush
Used on most chassis' from the early 90's onwards.
Please note these are not the same as the suspension bushes and are 12mm not 7/16
4 required per car

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 5225002

DESCRIPTION:

Standard steering column bush for current columns.
Please make sure this matches your column.
***DESIGN CHANGE OCCURRED LATE OCTOBER/NOVEMBER 2019***
5225002 - NEW STYLE - Bush outer diameter; 25.20mm inner diameter;20.10mm Depth; 15mm

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3224023

DESCRIPTION:

Westfield Diff Mounting Bush
Bushes will fit Westfield ali diff casing.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk
