WESTFIELD PART NO: 4611131

DESCRIPTION:

FIA approved Magnum TRS premium harness, 4 point fixing with 3" straps. Fits all Westfields with lowered floors with two eye bolt mounts. *** Please be aware as harnesses do not have E mark and for this reason are non IVA compliant***

Left and right hand captive options available. Priced and sold individually.

Steel anti-creep adjusters
Snap hook fixings all around
FHR Compatible
The 4pt Magnum Harness has steel anti-creep adjusters and snap hook fixings all round. The shoulder straps can be wrapped around the roll cage if required.
TRS' light weight 140 gram quick release buckle is of composite construction and is attached to the right-hand lap strap on 4 point harnesses.

Innovative features such as, a securing tab for intercom cables on the shoulder strap, thumb loops on lower shoulder straps and Velcro patches on lap straps were all pioneered by TRS and are standard on all of our competition harnesses.

Weight: 1201 grams

***Please note, this will suit Westfields with flat floors - only if seat is right back against the rear bulk head. If moved forward they not be applicable***

WESTFIELD PART NO: 3713066

DESCRIPTION:

STD Track Front Anti Roll Bar
Bar only with no fixings
Photo is for illustration purpose only.

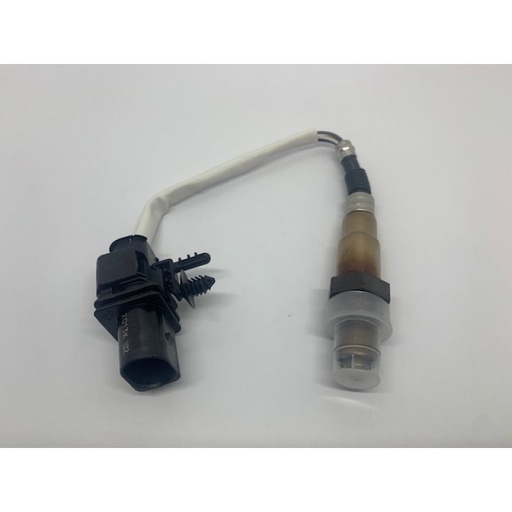

WESTFIELD PART NO: 4957005

DESCRIPTION:

Sport 250 Top Lambda Sensor

WESTFIELD PART NO: 3224035

DESCRIPTION:

Mazda Differential Upper Bracket

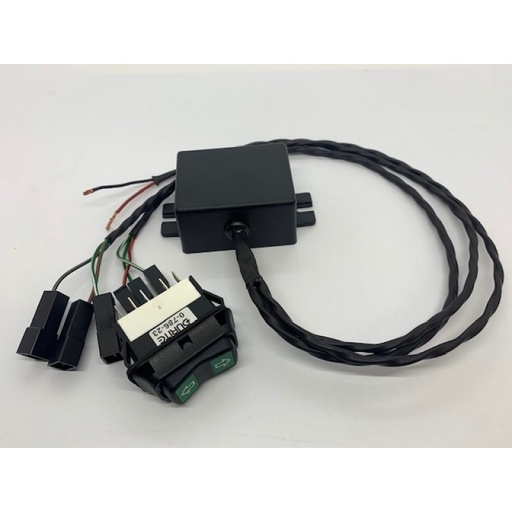

WESTFIELD PART NO: 4932026

DESCRIPTION:

Self cancelling indicator switch Kit
Includes timing ecu, loom and directional switch and full wiring instructions
Operating instructions

For a 10 second indication, push the switch in the desired direction for less than 1 second.
For a 20 second indication, push and hold for approximately 1 second or more before letting go.
To cancel the indication push and quickly release the switch in the same direction.
The direction of indication can be quickly changed from one direction to the other by simply pressing the switch in the opposite direction for the corresponding length of time.

WESTFIELD PART NO: 5594064

DESCRIPTION:

ZK bodywork carbon effect stone guards.
***Will not fit Sierra SDV - as they had extra wide arches fitted as standard***
Complete kit including carbon effect stone guards, x 20 pop rivets and 3.3 metres of edging piping.
Please note these will not fit the fixed rear bodywork. (non-detachable arches)
Please also note, these will not fit extra wide arches.

WESTFIELD PART NO: 3721006

DESCRIPTION:

Aluminium front hub (Priced per hub). Complete with wheel bearings, studs and split pin.

To fit Westfield vehicles that currently have aluminium front uprights.

Hubs will also fit original Cortina uprights.

WESTFIELD PART NO: 4632122B

DESCRIPTION:

Standard loop roll bar to fit all wide body cars

WESTFIELD PART NO: 1390056

DESCRIPTION:

Westfield XI Door Fillets
Fillets are supplied in an unpolished white or grey gelcoat. The panel would require painting to match the car.

WESTFIELD PART NO: 5870300

DESCRIPTION:

Carbon effect dashboard for wide bodied cars.
Please note this dash is made to suit wide body cars only however some people have modified it to suit a standard body car.
This product is for a blank dash.

Shipping of over sized items may attract a higher charge depending on a range of factors that cannot presently be calculated at the point of sale. We may need to apply a delivery surcharge to your order. If that situation arises, we will contact you.

WESTFIELD PART NO: 2346040

DESCRIPTION:

Big Brake Kit Brake Caliper Pads DS2500
Set of 4 pads for both front calipers

WESTFIELD PART NO: 3713111B

DESCRIPTION:

Westfield XI Front Anti Roll Bar
Please note that this kit is not suitable for any other car.

WESTFIELD PART NO: 5551057B

DESCRIPTION:

5 piece hood frame kit to suit FW body work
Kit includes 2 small brackets that fit inside car and 3 connecting brackets over top to support hood.

WESTFIELD PART NO: 2314127

DESCRIPTION:

0.7" Master Cylinder

WESTFIELD PART NO: 3712215B

DESCRIPTION:

3rd Gen Wide Track Front Top Wishbone
The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

WESTFIELD PART NO: N2121103

DESCRIPTION:

Team Dynamics Pro Race LT Wheel 7x15 ET25 4x108
Wheel is flow formed technology and weighs only 6.1KG
TUV approved and tested10 Spoke
Gunmetal grey in Colour. 10 Spoke, TUV approved and tested, Flow Formed Technology These are not a direct replacement for the older pro race 1.2 wheel

WESTFIELD PART NO: N2121102

DESCRIPTION:

Team Dynamics Pro Race LT Wheel 8x15 ET25 4x108
Wheel is flow formed technology and weighs only 6.1KG
TUV approved and tested10 Spoke
Gloss Black in Colour. 10 Spoke, TUV approved and tested, Flow Formed Technology These are not a direct replacement for the older pro race 1.2 wheel

WESTFIELD PART NO: 3235050

DESCRIPTION:

Type 9 Steel Bell Housing
Bell Housing has been reconned and sprayed to give a clean finish.

WESTFIELD PART NO: 5231015

DESCRIPTION:

Formula Self-Aligning Quick Release Boss - Weld On
Go-Race Formula (3 X 50.8 mm PCD) Quick Release Steering Boss with Weld-On Shaft

The self-aligning mechanism makes it easier and faster to attach your steering wheel. Simply attach the boss and turn the wheel until the locking mechanism locates
Precision CNC machined using high quality materials
Zero play design eliminates any backlash
Lightweight Design
Weld-on Shaft adaptable to any steering column*

3 x 50.8 mm PCD bolt flange suitable for most single seater / formula wheels
Choice of colour (gold or black)
Conforms with FIA regulations
Manufactured in the UK
PRODUCT SPECIFICATIONS
Wheel Fitting 3 X 50.8 mm PCD
Column Fitting Weld On
Boss Material Aluminium
Boss Finish Hard Anodised
Boss Weight 135 g
Shaft Material Mild Steel
Shaft Finish Nickel (removed on welded area)
Shaft Weight 100 g

*Welding to be carried out by experienced welder/fitter. Requires drilling/machining to fit column.

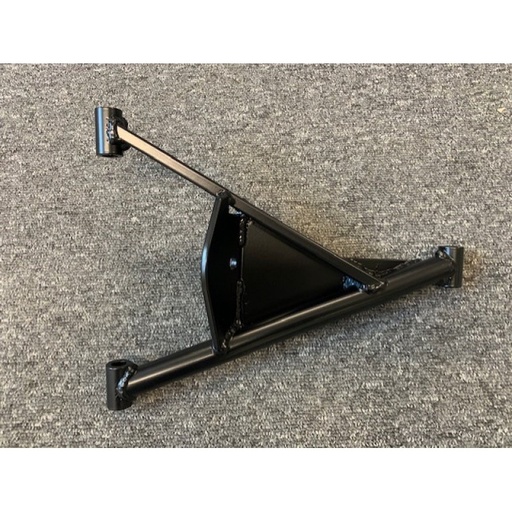

WESTFIELD PART NO: 3224066B

DESCRIPTION:

Mazda SDV LH Diff Mounting Bracket
