WESTFIELD PART NO: 3702093

DESCRIPTION:

Wide track front wishbone kit 3rd generation.

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

Kit Includes:

2 top and 2 bottom powder coated +50mm wide track wishbones 3rd generation
2 camber adjusters for top wishbones
4 top hat bushes for aluminium uprights to fit new style ball joints 2 upper 2 lower
2 top ball joints and nuts 3rd generation
2 lower ball joints and retaining clips 3rd generation
All nuts bolts and washers to fit the kit to your car.

You will also require

8 suspension bushes (4313001)

2 longer brake hoses. (sei rear brake hoses required 2311007)2 Wide track front springs (3702093)

NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

WESTFIELD PART NO: 3711052B

DESCRIPTION:

Standard track front bottom wishbone.
Fits all Westfield models 1988 - on wards, with Cortina uprights or Westfield Aluminium uprights.
These wishbones do not fit Mazda SDV or Sierra SDV vehicles.
Direct replacement for previous wishbone with Cortina ball joint (4 bolt flange).
If you are replacing the previous Cortina style ball joint they MUST be replaced as a pair, Both sides of the vehicle must have the same arm, if you need to replace both arms please change quantity to 2 units.
Wishbones are supplied as pictured without ball joints and bushes, these must be ordered separately, please see related items.
Suitable for all types of suspension bush, metalastic, nylon and Powerflex.

WESTFIELD PART NO: 3750001

DESCRIPTION:

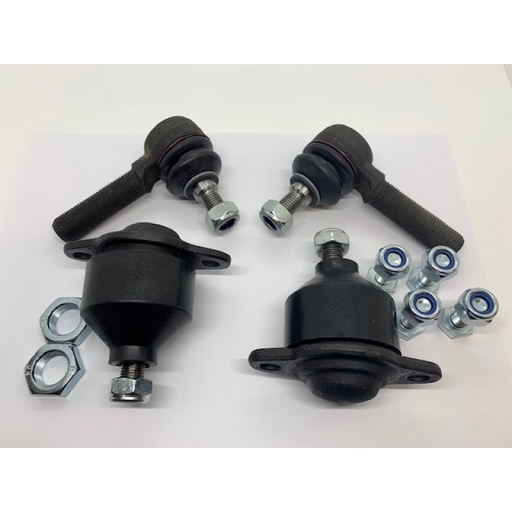

Ball joint set - suitable for standard track / early widetrack wishbones.

Comes with:
2 top ball joints
2 bottom ball joints

Including bolts and nuts for bottom ball joints and lock nuts for top ball joints.
Fits all current Westfield lower arms, standard track and wide track only.
Does NOT fit 3rd generation wishbones.

WESTFIELD PART NO: 3750000

DESCRIPTION:

Ball joint set suitable for 3rd generation wishbnones only

2 top ball joints

2 bottom ball joints

Including bolts and nuts for bottom ball joints and lock nuts for top ball joints.

WESTFIELD PART NO: 7300705B

DESCRIPTION:

Replacement fastener kit for front and rear suspension, suitable for standard, wide track and 3rd gen wishbones.
Bolts: 7811107 x 20 / 7811127 x 2 / 7811167 x 2 / 7811117 x 2 / 7811157 x 2
Nuts & Washers: 7133007 x 28 / 6823TU7 x 68 / 6853AU7 x 8

WESTFIELD PART NO: 3752002

DESCRIPTION:

Bottom ball joint (sold as an individual unit )
Please note these have a two bolt flange fixing, if your Westfield has the four bolt flange these are not a direct replacement.
***If you have the four bolt flange ball joints on your Westfield and cannot find a suitable replacement in the aftermarket sector, you will need to upgrade to the newer version of the standard track wishbone - 2 x  3711052B. You will also require 2 x 3752002. Lastly you will require replacement 4 x suspension bush - various options, please search for 'suspension bush'.
2 bolt flange style fitment wishbones are a direct replacement for the older 4 bolt flange wishbones.
***Will NOT suit 3rd generation wishbones.
