Westfield parts and upgrades

WESTFIELD PART NUMBER: SPECIAL EDITION MODULE 1

CONTENTS

Space frame epoxy coated chassis
Rivnuts and diff bushes
Aluminium panels supplied
Front and rear wishbones (epoxy coated and bushed)
Aluminium front and rear uprights, hubs, brake discs and calipers
Pedal assembly
Master cylinder
Drive shafts and cv joints
Differential (LSD)
Brake pipes and Aeroquip hoses
Fuel lines
Steering columns top and bottom
Battery tray
Wiring loom
Ball joints
Shock absorbers and springs
Steering rack, mountings and track rod ends
Hand brake lever and cable
Complete fastener kit

WESTFIELD PART NO: 3702096

DESCRIPTION:

Wide track front wishbone 3rd generation kit, with wide track front and rear shocks and springs also includes front and rear brake hoses and powerflex bush set.

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack


NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3740011

DESCRIPTION:

Set of 4 shock absorber and springs
Suitable for Standard wishbones
Will NOT suit wide track or 3rd gen suspension

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3740006

DESCRIPTION:

Wide Track Protech Shock and Spring Kit
Suitable for wide track and 3rd Gen wishbones
Will NOT suit STD track suspension Will NOT Suit Sport 250 Models

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3702093

DESCRIPTION:

Wide track front wishbone kit 3rd generation.

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

Kit Includes:

2 top and 2 bottom powder coated +50mm wide track wishbones 3rd generation
2 camber adjusters for top wishbones
4 top hat bushes for aluminium uprights to fit new style ball joints 2 upper 2 lower
2 top ball joints and nuts 3rd generation
2 lower ball joints and retaining clips 3rd generation
All nuts bolts and washers to fit the kit to your car.

You will also require

8 suspension bushes (4313001)

2 longer brake hoses. (sei rear brake hoses required 2311007)2 Wide track front springs (3702093)

NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3740002

DESCRIPTION:

Wide Track Shock and Spring Kit
Suitable for wide track and 3rd Gen wishbones
Will NOT suit STD track suspension Will NOT suit Sport 250 Models

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3740056

DESCRIPTION:

Set of 4 shock absorber and springs
Suitable for Standard wishbones
Will NOT suit wide track or 3rd gen suspension

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4342005

DESCRIPTION:

Dampers rear and wide track front - price per shock
If you have wide track suspension you will need 4 of these shocks
Brand new for the Westfield, made from 45 M/M diameter 6262 specification aluminium with adjustable spring seat platform for 1.9" I.D. springs
A great high quality mid range damper, single adjustable for bump and rebound.
Weight: 1.05 per shock. 2.10 kg per pair.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3742005

DESCRIPTION:

Standard track front damper
Brand new for the Westfield are made from 45 M/M diameter 6262 specification aluminium with adjustable spring seat platform for 1.9" I.D. springs
A great high quality mid range damper, single adjustable for bump and rebound.
Weight: 1.0 kg per shock, 2.0 per pair.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3741190

DESCRIPTION:

Wide Track Front Shock Absorber Spring

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3741163

DESCRIPTION:

Westfield XI Rear Shock Absorber Spring

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3741069

DESCRIPTION:

Westfield XI Front Shock Absorber Spring - 2.25 x 7 x 350lbs

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3741219

DESCRIPTION:

STD Track Front Shock Absorber Spring
This spring suits standard track suspension only
Please note if you have widetrack front wishbones you will require a different spring,

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3741198

DESCRIPTION:

Rear Shock Absorber Spring

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3741060

DESCRIPTION:

Nitron Shock Absorber Spring 200LB x 9 x 2.25

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 6366004

DESCRIPTION:

Accelerator Return Spring

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 6811YR2

DESCRIPTION:

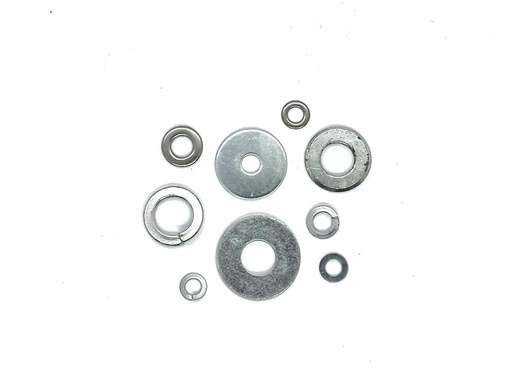

M12 Spring Washer

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 6811010

DESCRIPTION:

M10 Spring Washer

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 6811008

DESCRIPTION:

M8 Spring Washer

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 68112P6

DESCRIPTION:

M6 Spring Washer

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk
